Edan Se-3 ECG Machine 3 Channel
৳ 49,000৳ 55,000 (-11%)
- 3-Channel Waves Are Displayed and Recorded Simultaneously
- 12-Lead Simultaneous ECG Acquisition
- Built-In High-Resolution Thermal Printer or Optional 12-Channel Report Printing on an External Printer
- Automatic Adjustment of Baseline for Optimal Printing
- Low Weight and Compact Size
Edan Se-3 ECG Machine 3 Channel:
Edan Three-Channel ECG Machine may be a portable electrocardiograph with a built-in high-resolution thermal printer, suited to the use on adult and pediatric patients. ergonomic style and a easy interface with single-touch operate keys guarantee versatility and create it appropriate for any work scene.
Excellent Features: Edan Three-channel ECG Machine may be a light weight unit with foldable screen, carrying handle and a inbuilt rechargeable Li battery that makes it a superb portable medical instrument. AC and EMG interference, complete digital filtering operate and avoiding baseline drift guarantee clinically correct readings. A elegant membrane keyboard is very simple to control with quick hot keys. simple connectivity for data transfer to your computer is conducted via RS232/Ethernet port. a large data storage capability permits 120/144 ECGs review optional, which might be extended with the use of USB flash disk.
ECG
The Three-channel ECG Machine provides a 12-lead ECG diagnostics simultaneously and displays each ECG parameters and electrocardiograms. It provides clinically correct automatic ECG measurements and interpretation.
Printer and Printing ECG Reports
The Three-channel ECG Machine is assembled with a built-in high-resolution printer permitting the use of roll or folded paper sorts. the automated baseline adjustment operate serves to optimize printing position. The printing may be carried out in auto, Manual, Rhythm or USB work modes. each mode can be chosen freely by means that of 1 button mode switch. In auto mode the lead teams are switched automatically; in Manual mode you are to determine the lead group to be printed and set the parameters for every lead group manually; in Rhythm mode the machine prints 60s rhythm-lead ECG waveforms; USB print mode permits 12-channel report printing on an external printer.
Customize your Edan SE-3 Three-Channel ECG Machine

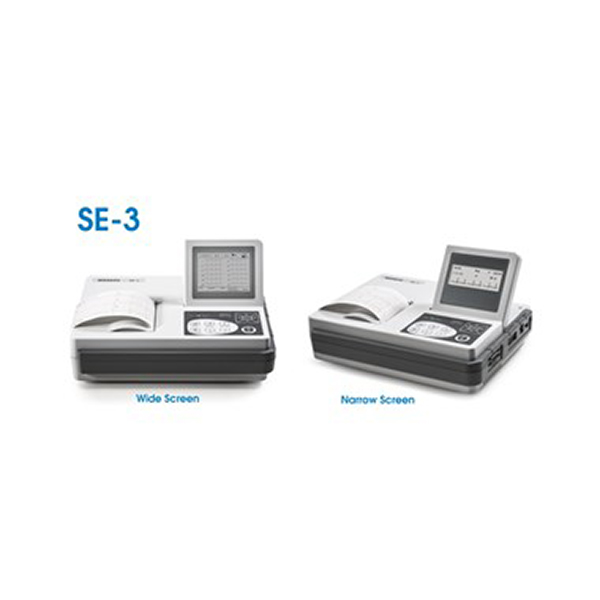

The SE-3 ECG Machine comes in 2 variations that provide you screen options:
SE-3A – slender Screen (192 x sixty four pixels, 3.5″ LCD display): one hundred twenty ECGs storage
SE-3B – silver screen (320 x 240 pixels, 4″ LCD display): a hundred and forty four ECGs storage
Get More ECG Machine
Specifications for Edan SE-3A Three-Channel ECG Machine
|
Display
|
|
| Display Type | LCD |
|
Measurement
|
|
| Frequency Range | 0.05Hz ~ 150Hz (-3dB) |
| Sampling Rate | 1000Hz |
|
Memory
|
|
| Memory Capacity | 120 / 144 ECGs review |
|
Filters
|
|
| DFT Filter: 0.05Hz / 0.15Hz / 0.25Hz / 0.32Hz / 0.5Hz / 0.67Hz | |
| EMG Filter: 25Hz / 35Hz / 45Hz / OFF | |
| LOWPASS Filter:150Hz / 100Hz / 75Hz | |
|
Power Supply
|
|
| Power Supply Type | Built-in rechargible battery |
| Battery Life | about 6.5 hours |
|
Environmental Specifications
|
|
| Safe Operating Temperature | +5ºC (+41ºF) ~ +40ºC (+104ºF) |
| Safe Storage Temperature | -20? (-4ºF) ~ +55? (+131ºF) |
| Operating Humidity | 25%~80% Non-Condensing |
| Storage Humidity | 25%~93% Non-Condensing |
|
Dimensions
|
|
| Dimensions | 11.3″ × 8.3″ × 2.8″ |
| Weight | 5.5 lbs |
|
Connectivity
|
|
| PC Compatible? | Yes |
| Printer? | Yes |
|
Warranty
|
|
| Warranty | 2 Years |
|
Country of Origin
|
|
| Made In: | USA |
|
Standards & Certifications
|
|
| IEC/EN standards | |
|
Software Specification
|
|
| Monitoring formats | 12-lead ECG continious monitoring |
| Print speeds | 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s (±3%) |
