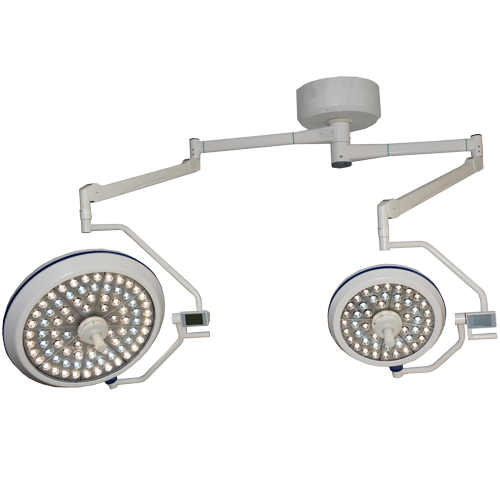

Operation LED Dual Dome Light LED-F700/500
৳ 380,000৳ 420,000 (-10%)
- LED OPERATING THEATER LIGHT LED 700/500
- Germany imported Osram LED medical light source is adopted
- LED Touch pad control system is developed for adjustment control of power switch
- Brightness switch
- Illumination level
- Color temperature
- Color rendering index to meet medical personnel requirement of variant operation.
- Cold infrared-free light In comparison to conventional halogen and gas discharge lamps
- The “cold” LED light allowing for fatigue-free operating and prevents tissue from drying out in the operation field at the head area of the surgeon.
- Brand XINJU YOCHENG
- Origin CHINA
Frequently Bought Together
- This item: Operation LED Dual Dome Light LED-F700/500(৳ 380,000
৳ 420,000(-10%)) - Multipurpose Operation Theater Table (OT Table) - 3008A(৳ 150,000
৳ 160,000)

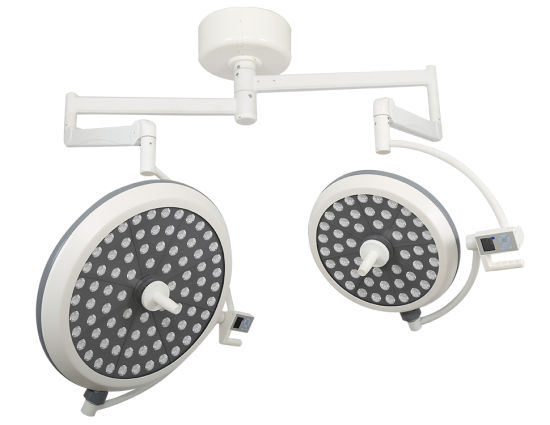

Operation LED Dual Dome Light LED-F700/500
LED OPERATING LIGHT LED 700/500 FEATURE Germany imported Osram LED medical light source is adopted II LED Touch pad control system is developed for adjustment control of power switch, brightness switch, illumination level, color temperature, color rendering index, to meet medical personnel requirement of variant operation. Cold infrared-free light In comparison to conventional halogen and gas discharge lamps, the “cold” II LED light allows for fatigue-free operating and prevents tissue from drying out in the operation field at the head area of the surgeon.
FEATURE
Germany imported Osram LED medical light source is adopted
II LED Touchpad control system is developed for adjustment control of the power switch, brightness switch, illumination level, color temperature, and color rendering index, to meet medical personnel requirements of variant operation.
Cold infrared-free light
In comparison to conventional halogen and gas discharge lamps, the “cold” II LED light allows for fatigue-free operating and prevents tissue from drying out in the operation field at the head area of the surgeon.
Shadow-free Illumination
The relation between the light body and light field diameter guarantees optimum illumination of the OT field in terms of area and depth.
High Luminance with optimum color rendering
Designed to provide a light output with a color rendering index and color temperature which is very close to natural daylight. This helps the surgeon to distinguish between pathological and healthy tissue.
Optimum design for clean air ceilings (Laminar Air Flow)
The perfect design reduces the airflow surface beneath the ventilated ceiling, Flow-optimized light head and reduced surface temperature minimize turbulence in laminar airflow.
Long-lasting light sources, environmentally friendly
With a life cycle of at least 50,000 operational hours, an LED provides illumination many times longer than conventional lighting. In addition, each LED can be replaced individually and on-site.
The German modal and Chinese arm system option
As a flexible lighting solution, II LED light can be individually combined with different support arm solutions, enabling it to be used as needed in different operating theatres.
STANDARD MODEL CONFIGURATIONS:
II LED700/700(700mm+700mm Lamp Head)
II LED700/500(700mm+550mm Lamp Head)
II LED500/500(700mm+550mm Lamp Head)
II LED700 (700mm Lamp Head)
II LED500 (550mm Lamp Head)
TECHNICAL SPECIFICATIONS FOR LED LIGHT
| Technical specifications for lights | II LED700 | II LED500 |
| Central illuminance at 1m working distance | 40,000~18,0000 lux | 40,000~160,000 lux |
| Focusable light-field size at 1 m distance | 120~300mm | 120~300mm |
| Colour temperature | 3500~5000K | 3500~5000K |
| Depth of Focus | >700mm | >700mm |
| Colour Index Ra | 95 | 95 |
| Power Supply | 110~240V 50/60Hz | 110~240V 50/60Hz |
| Effective bulb service life | >50,000h | >50,000h |
| Diameter of lamp housing | 700mm | 550mm |
| Power consumption of light heads(W) | 60 | 48 |
| Installation height (Ceiling type) | 280-320 cm | 280-320 cm |
