BRITEMED PC Based 12 Channel ECG Machine

PC-Based 12 Channel ECG BRITEMED TECHNOLOGY INC.

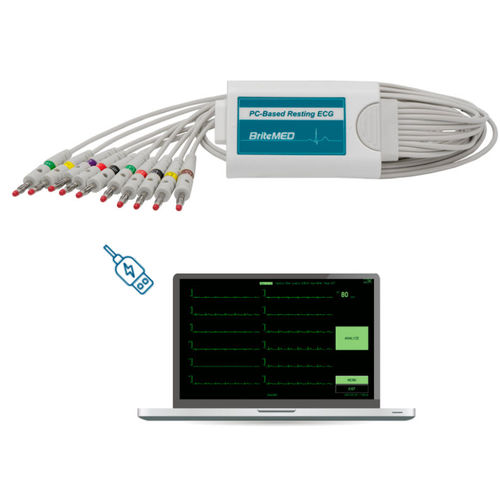

The BriteMED® ECG provides an innovative and cost-effective way to manage 12-lead ECG records by connecting to the existing PC for operation instead of purchasing a whole new ECG system. The accompanying software has multi-language interfaces and allows easy management of patient profiles and ECG reports.

The only Made-in-Taiwan portable 12-lead ECG provides medical professionals with an affordable solution to monitor patients’ heart conditions on the move. The accompanying software allows quick review and interpretation with a detailed ECG report.

• Small as the pocket size makes it perfect for use in doctors’ visits, clinics, and mobile healthcare service
• The report is printed on general A4 paper instead of additionally purchasing thermal papers.
• ECG report is saved in a digital file, facilitating e-mail communication and integration to the hospital information system.
• The software manages real-time ECG waveform, patient profile, and QRS analysis, for doctors’ diagnosis reference.
• Advanced defibrillator protection and pacemaker detection feature a reliable use for emergency applications.

Specification

Patient Leads: 12 -lead electrocardiogram
Sensitivity: 5, 10, 20,40mm/mV
Sampling Rate: 1000 samples per second
Low Cut Filter: 0.05 Hz, 0.15 Hz, 0.3 Hz
High Cut Filter: 30 Hz, 150 Hz, 250 Hz, off
Hum Filter: 50 Hz, 60 Hz, off
Common Mode Rejection: > 90dB
Sweep Speed: 25mm/s
Printing Paper Size: A4
HR Measurement Range: 30BPM_300BPM, Accuracy: ± 1BPM
Defibrillator Protection: Yes
Pacing Pulse Detection: Yes
Power Supply: 5V/0.3A (supplied from PC via USB cable)
Dimensions (L x W x H): 85 x 60 x 23.2mm
Weight: 157.5 g
Operating Temperature: 10°C_40°C
Storage Temperature: -20°C_50°C
System Requirements OS: Microsoft Windows 7 (32-bit/64-bit) or newer OS is required.
PC display resolution: 1280 x 768 (min)
