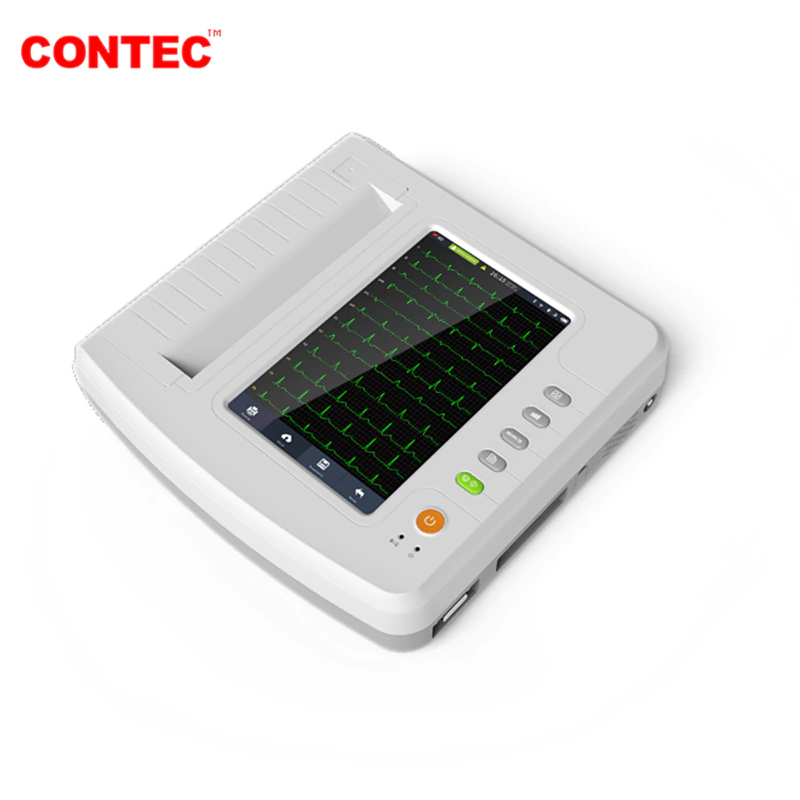

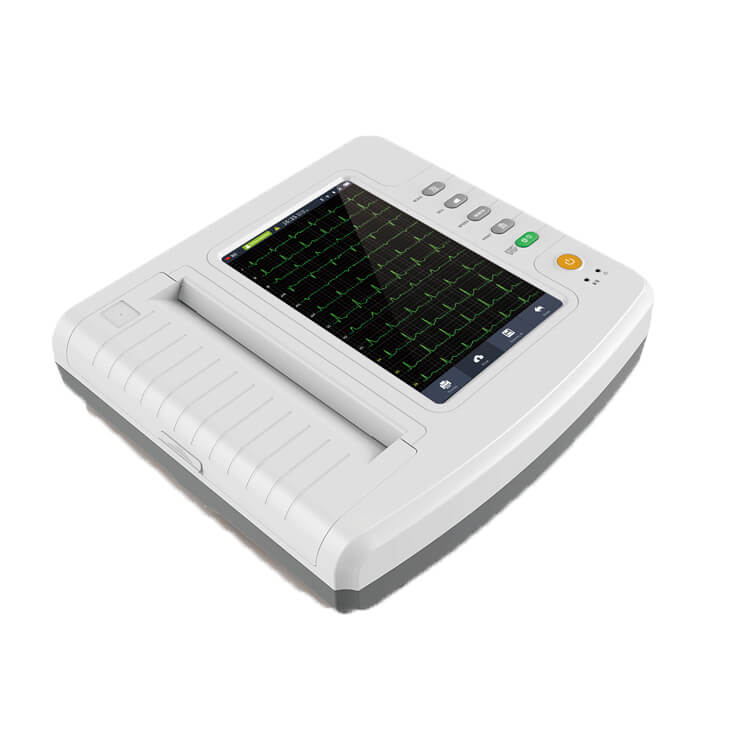

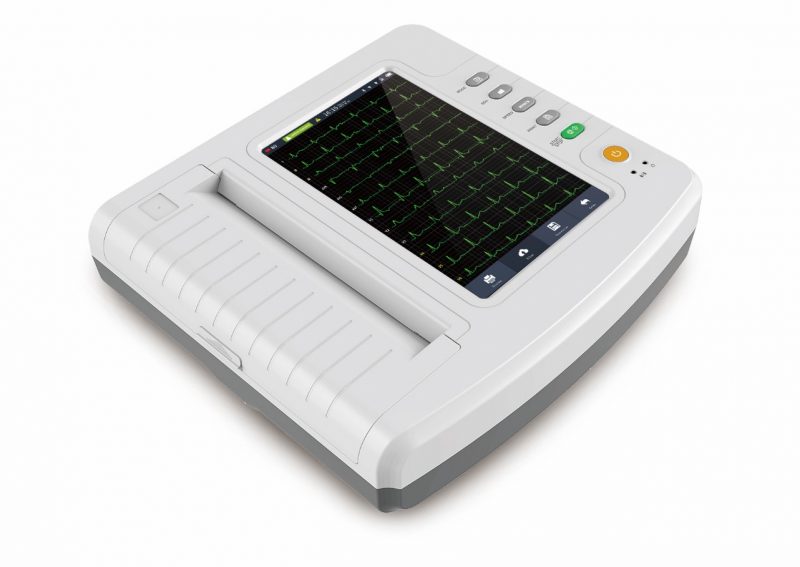

Contec 12 Channel Digital Electrocardiograph ECG1212G

Contec 12 Channel Digital Electrocardiograph ECG1212G

The device is an electrocardiograph which can collect 12-lead ECG signal simultaneously and print ECG waveform with thermal printing system. It features in, recording and displaying ECG waveform in auto / manual mode; measuring, analyzing and diagnosing ECG waveform parameters automatically; prompting for “Lead off” and “Lack of paper”; optional interface language (Chinese / English, etc.); built-in lithium battery, AC / DC; selecting rhythm lead freely to observe abnormal heart rhythm; case database management.

1. Input mode: floating and defibrillation protection
2. Lead: standard 12-lead
3. Patient leak current: < 10 µA
4. Input impedance: ≥ 2.5 MΩ
5. Frequency response:
   Nominal input amplitude    Input frequency and waveform    Relative output response
   1.0    0.67 Hz ~ 40 Hz, sinusoidal    ±10 %a
   0.5    40 Hz ~ 100 Hz, sinusoidal    +10 %, -30 %a
   0.25    100 Hz ~ 150 Hz, sinusoidal    +10 %, -30 %a
   0.5    150 Hz ~ 500 Hz, sinusoidal    +10 %, -100 %a
   1.5    ≤1 Hz ,200 ms, triangular    +0 %, -10 %b
   a relative to 10 Hz output   b relative to 200 ms output
6. The time constant: ≥ 3.2 s
7. CMRR: > 105 dB
8. Filter: power frequency (AC 50 / 60 Hz), EMG (25 Hz / 35 Hz (-3 dB)) and baseline drift
9. Recording mode: thermal printing system
10. Paper size: 210 mm (W) × 20 m (L), high-speed thermal paper
11. Paper speed: 12.5 mm/s, 25 mm/s, 50 mm/s, error: ± 5 %
12. Gain (sensitivity): 5, 10, 20 mm / mV, accuracy: ± 2 %
    Standard sensitivity: 10 mm/mV ± 0.2 mm/mV
13. Record mode: auto, rhythm and manual record
14. Measurement parameters: HR, P – R interval, P Duration, QRS Duration, T Duration, Q – T interval, Q – Tc, P Axis, QRS Axis, T Axis, R (V5) amplitude, S (V1) amplitude, R (V5) + S (V1) amplitude
15. Safety class: class I, defibrillation-proof type CF applied part
16. Polarizing voltage: ± 610 mV
17. Noise level: ≤ 12 µVp-p
18. Sampling frequency for ECG signal input: 32 kHz
19. Sampling frequency for waveform data processing: 1 kHz
20. Sampling accuracy: 24 – bit
21. Minimum detection signal: a 10 Hz, 20 µV (peak – peak value) sinusoidal signal can yield a visual recorded deflection.
22. Pacemaker detection channel: II
23. Accuracy of input signal reproduction: ± 5 %
24. Amplitude quantization: ≤ 5µV/LSB
25. Time deviation in each channel: <100 µs
26. Power supply:
    AC: 100V ~ 240V (50 / 60 Hz)
    DC: 14.8 V / 5200 mAh rechargeable lithium battery
27. Degree of protection against ingress of liquid: IPX0
28. Working mode: continuous operation

Accessories Standard:
One lead cable
One limb electrode
One chest electrode
One thermal recording paper
One power cord
One earth wire
One User Manual

Physical characteristic Operating:
a) Environment temperature: 5 ℃ ~ 40 ℃
b) Relative humidity: 25 % ~ 95 % (non – condensing)
c) Atmospheric pressure: 700 hPa ~ 1060 hPa
Transport and storage:
a) Environment temperature: – 20 ℃ ~ + 55 ℃
b) Relative humidity: ≤ 95 %
c) Atmospheric pressure: 500 hPa ~ 1060 hPa
Dimension: 340 mm (L) × 320 mm (W) × 86 mm (H)
Weight: 5 kg
