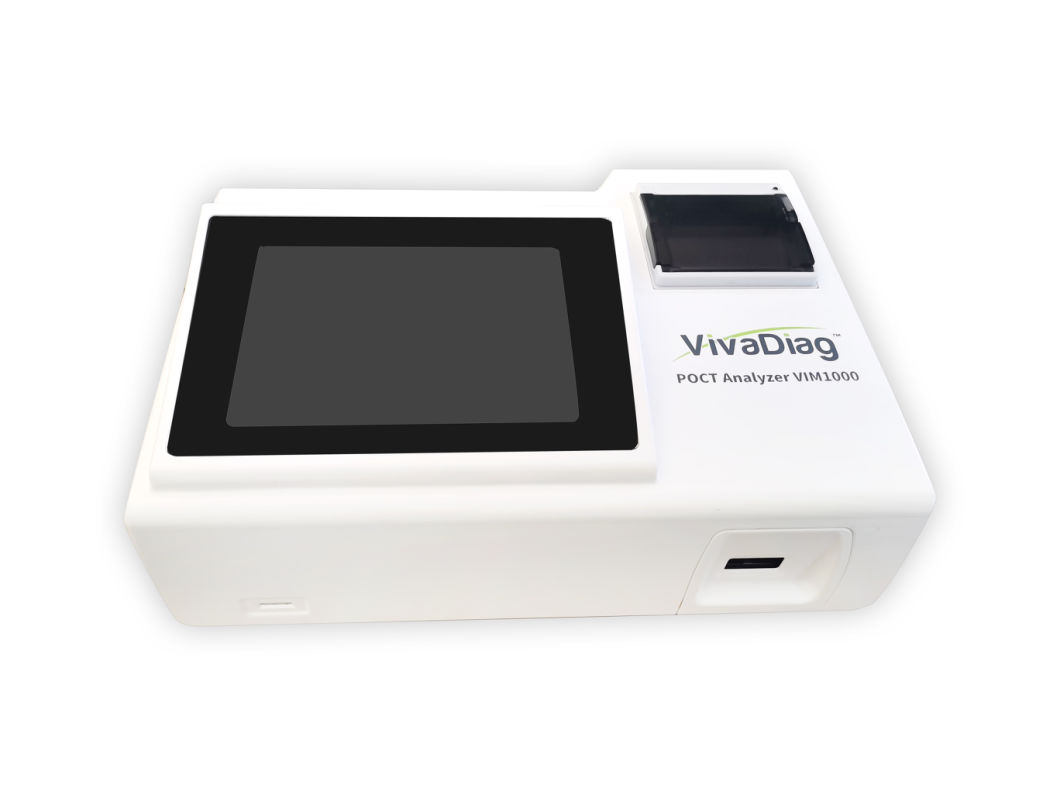

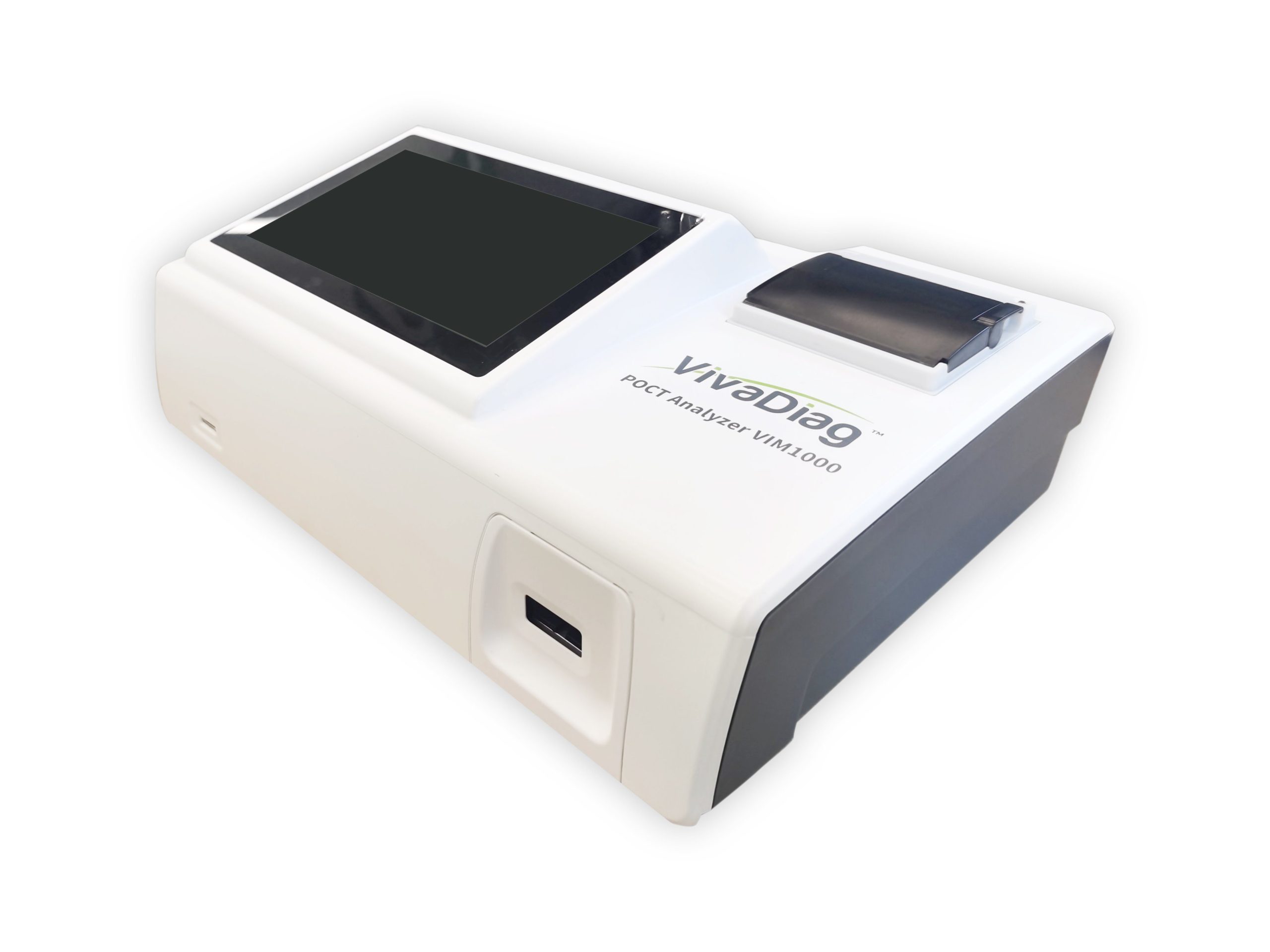

VivaDiag™ POCT Analyzer VIM1000
POC diagnostic device is used to test glucose and cholesterol levels, do electrolyte and enzyme analysis, test for drugs of abuse and for infectious diseases, and for pregnancy testing. Blood gases, cardiac markers, and fecal occult blood tests can also be done with POC diagnostic device. There are several advantages to doing the tests at the point of care, including quick results and faster implementation of therapy, if needed.

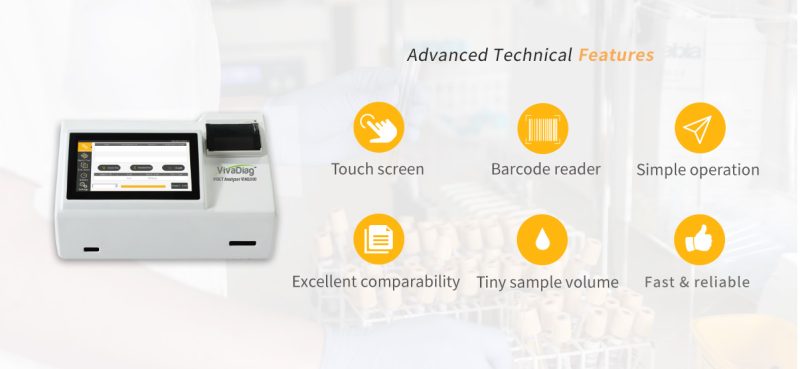

CHARACTERISTICS
- Excellent comparability: More parameters like T3, T4 can be detected.
- Large capacity: Memory of 50,000 results.
- Code bar scanner.
- Excellent comparability.
- Small sample volume.

SPECIFICATIONS
- Dimensions : 280 x 240 x 130mm.
- Weight : 2.5 kg.

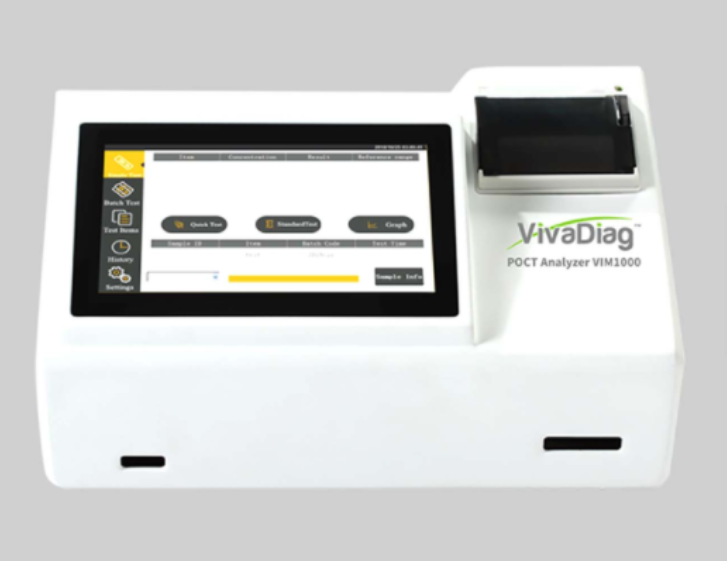

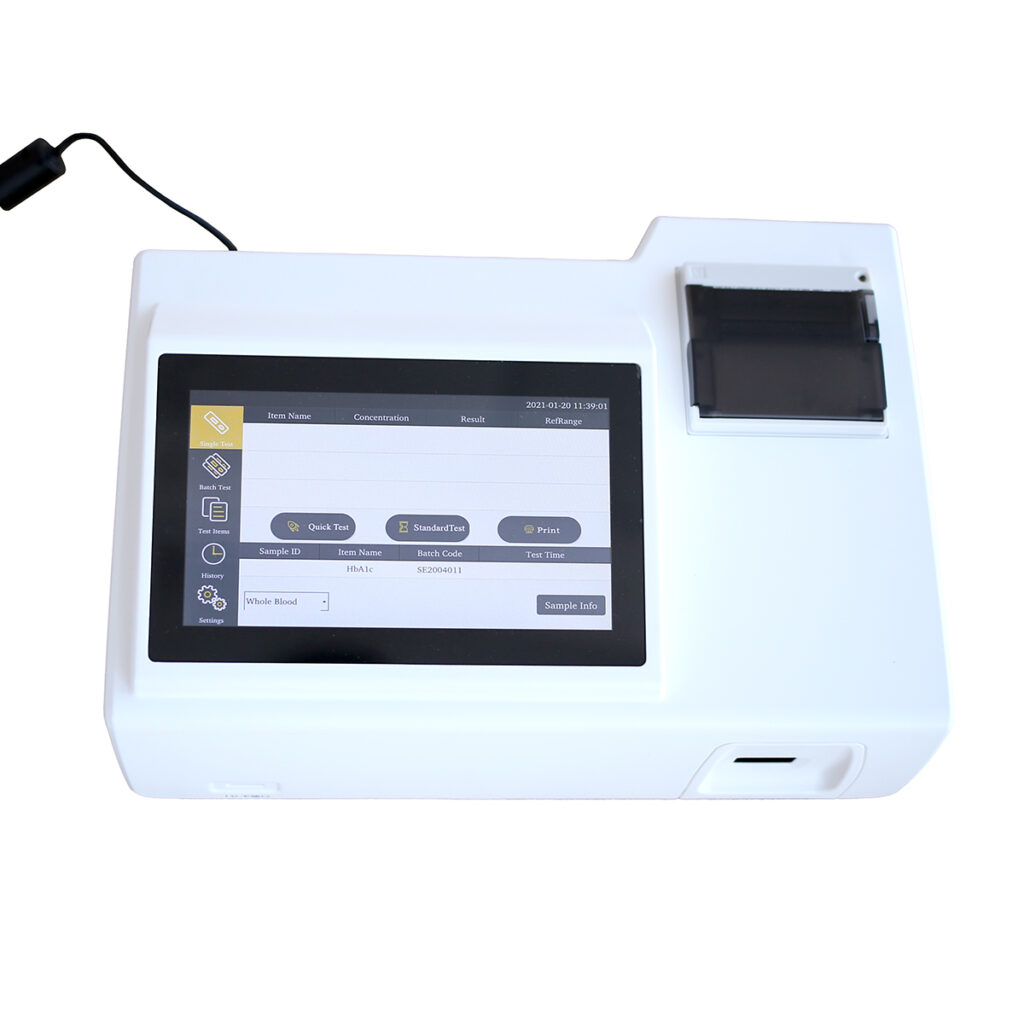

- Display Touch Screen : Easy and simple to use 7″ LCD.
- Sample type : Whole blood / serum / plasma / urine / hair.
- Barcode identification : 2D.
- Operating temperature : 5-40 °C.
- Storage temperature : -10-40 °C.
- Relative humidity : 20 to 90%.
- Connectivity : RS232 and USB and COM.
- Printer : Built-in thermal printer.
- Memory : 50000 test results.

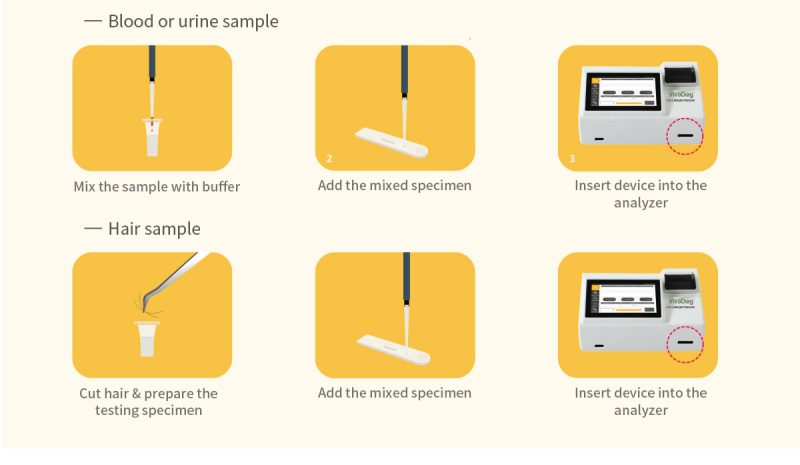

OPERATION STEPS
With a small sample (blood, urine, etc.), the VivaDiag ™ POCT VIM1000 analyzer gives reliable results in just a few minutes.
- Mix the sample with buffer.
- Add the mixed sample.
- Insert the device into the analyzer
